| Focal Length | 75mm | FOV(H×V) | 2/3" | 6.45°× 5.40° |
| Image Format | 2/3” （Φ11.1mm） | 1/1.7" | 5.75°× 4.30° | |
| Iris Range | F2.8～F16 | 1/1.8" | 5.63°× 3.75° | |
| Focus Range | 0.45m～1.9m | Filter Size | M30.5 ,P=0.5mm | |

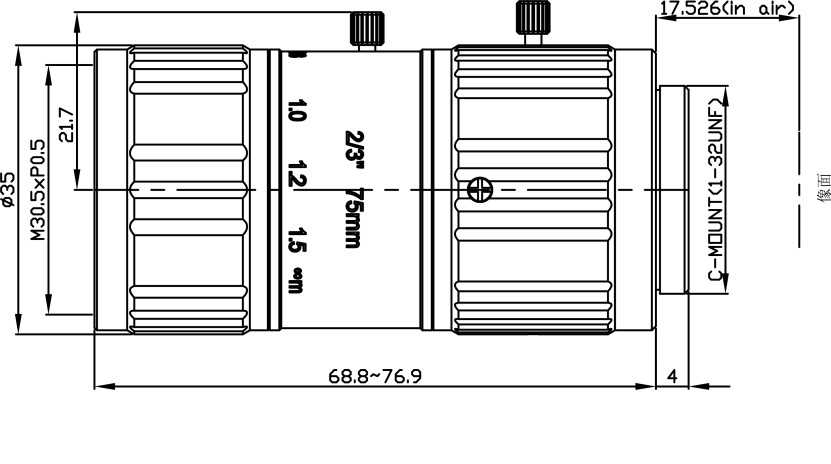

| TV Distortion | 0.01% @0.6m | Dimensions | Φ35x68.8mm | |
| Iris Type | Manual | Weight | 124±2g | |
| Mount | C-Mount | Temperature Range | -20℃～70℃ | |
