| Focal Length | 35mm | FOV(H×V) | 2/3" | 13.77°× 11.53° |
| Image Format | 2/3” | 1/1.7" | 12.28°× 9.20° | |
| Iris Range | F2.8 ～ F16 | 1/2.3" | 10.47°× 7.50° | |
| Focus Range | 0.25m ～ Inf. | Filter Size | M25.5 , P=0.5mm | |

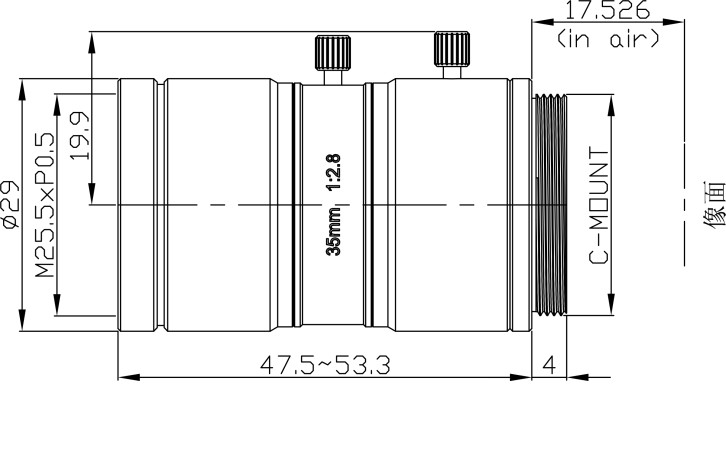

| TV Distortion | -0.01%@0.5m | Dimensions | Φ29×47.5mm | |
| Iris Type | Manual | Weight | 52±2g | |
| Mount | C-Mount | Temperature Range | -20℃ ～ 70℃ | |
