| Focal Length | 16mm | FOV(H×V) | 2/3" | 29.58°× 24.92° |
| Image Format | 2/3” | 1/1.7" | 26.49°× 19.97° | |
| Iris Range | F2.8 ～ F16 | 1/2.3" | 22.66°× 16.32° | |
| Focus Range | 0.1m ～ Inf. | Filter Size | M25.5 , P=0.5mm | |

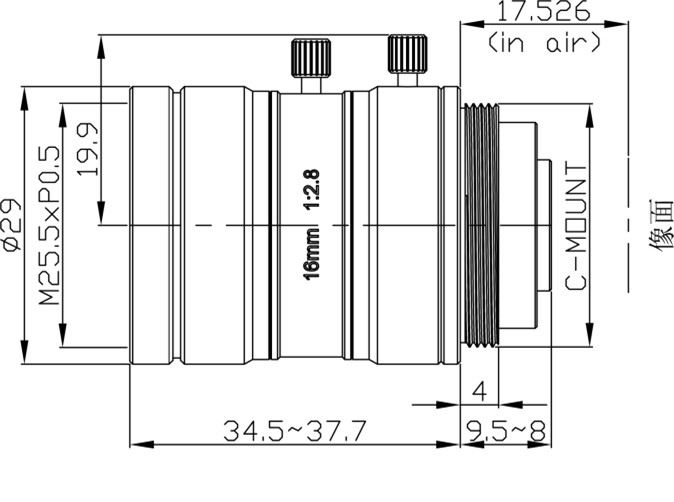

| TV Distortion | -0.02%@0.5m | Dimensions | Φ29×34.5mm | |
| Iris Type | Manual | Weight |
| |
| Mount | C-Mount | Temperature Range | -20℃ ～ 70℃ | |
