| Focal Length | 12mm | FOV(H×V) | 2/3" | 38.79°× 32.83° |
| Image Format | 2/3” | 1/1.7" | 34.85°× 26.43° | |
| Iris Range | F2.8 ～ F16 | 1/2.3" | 29.92°× 21.65° | |
| Focus Range | 0.1m ～ Inf. | Filter Size | M25.5 , P=0.5mm | |

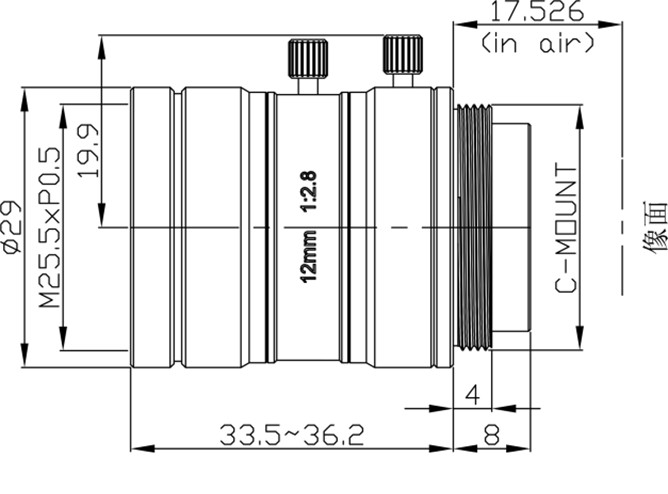

| TV Distortion | -0.05%@0.5m | Dimensions | Φ29×33.5mm | |
| Iris Type | Manual | Weight | 45±2g | |
| Mount | C-Mount | Temperature Range | -20℃ ～ 70℃ | |
